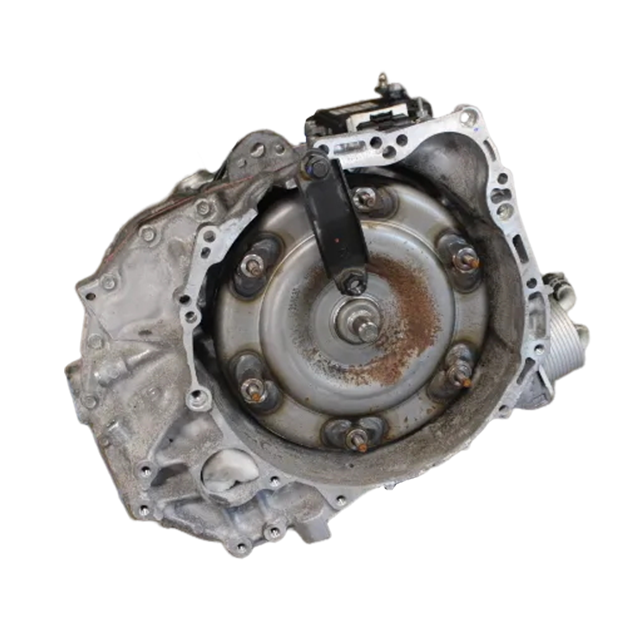

TF71 Gearbox for Suzuki 2.0L 2WD | Used & Reconditioned in UAE
Super5 supplies used and professionally reconditioned TF71 gearboxes for Suzuki 2.0L 2WD models (2015–2018). Each unit undergoes a comprehensive inspection, bench testing, and refurbishment to ensure reliability and smooth performance. We provide a 3-month warranty and expert installation services across Dubai, Sharjah, and Abu Dhabi.
Stock: units
Log in to unlock member/partner pricesVehicle Fitment
| Years | Make | Model | Engine | Drive Type |
|---|---|---|---|---|
| 2015–2018 | Suzuki | Suzuki | 2.0L | FWD |
The Suzuki TF71 is a 6-speed automatic transmission engineered for 2WD vehicles, delivering smooth gear shifts, reliable torque transfer, and enhanced fuel efficiency. Reconditioned TF71 gearboxes from Super5 are tested for UAE driving conditions, including high temperatures and stop-and-go city traffic. Using OEM-standard ATF fluid ensures precise shifting, reduced wear, and long-term durability. This gearbox is ideal for both urban commuting and highway driving, maintaining optimal performance and comfort for the driver.
Technical Parameters
| Specification | Details |
| Gearbox Model | TF71 |
| Transmission Type | 6-Speed Automatic |
| Manufacturer | Suzuki |
| Torque Capacity | ~320 Nm |
| ATF Type | Suzuki ATF 3309 or OEM Equivalent |
| Mechatronic Type | Integrated TCU |
| Dry Weight | ~90 kg |
| Cooling System | ATF Cooler Recommended for Hot Climate |
Installation process and precautions
Prepare the Vehicle
Park the vehicle on level ground, disconnect the battery, and lift it safely using a hoist or jack stands to access the transmission area. Ensuring stability at this stage prevents accidents and makes gearbox removal easier.
Remove Old Gearbox
Drain all automatic transmission fluid (ATF), then disconnect the wiring harnesses and cooler lines. Carefully unbolt the old gearbox and lower it using a transmission jack to avoid damaging surrounding components.
Install the Reconditioned TF71
Position the refurbished TF71 gearbox with the aid of a transmission jack. Replace all worn or damaged seals, and torque the mounting bolts strictly according to OEM specifications to guarantee a secure and reliable fit.
Reconnect Components
Reconnect the wiring harnesses, sensors, and the transmission control unit (TCU). Double-check that every plug and connector is fully seated to prevent communication errors or shifting problems later on.
Fill with ATF Fluid
Refill the transmission with Suzuki ATF 3309 or an OEM-approved equivalent. Adjust the fluid levels according to the manufacturer’s operating temperature guidelines to ensure optimal lubrication and cooling.
Programming & Adaptation
Perform TCU adaptation and ECU calibration using a Suzuki-compatible diagnostic tool. This step is critical for ensuring smooth 6-speed operation, precise gear control, and proper synchronization with the engine.
Final Road Test
Conduct a comprehensive road test under both city and highway conditions. Confirm smooth acceleration, consistent gear shifting, and stable ATF pressure to verify that the reconditioned TF71 is functioning correctly.
FAQ
Q1: Can I use a TF71 gearbox in AWD Suzuki models?
No. This TF71 unit is specifically designed for 2WD Suzuki vehicles. AWD models require a different transmission.
Q2: What type of ATF fluid is recommended for the TF71?
Suzuki ATF 3309 or an OEM-approved equivalent is recommended to ensure smooth shifting and long gearbox life.
Q3: How long can a reconditioned TF71 gearbox last?
With proper maintenance and installation, a reconditioned TF71 can reliably operate for 150,000–200,000 km.
Q4: Is ECU or TCU programming necessary after installation?
Yes. Proper adaptation and calibration are essential for smooth shifting and to avoid transmission error codes.
Q5: Can Super5 ship and install TF71 gearboxes outside Dubai?
Yes. Installation and technical support are available across Sharjah, Abu Dhabi, Ajman, and other UAE cities.
Warranty and Service
3-Month Warranty
Covers functional defects and workmanship for all used and reconditioned TF71 gearboxes.
Bench-Tested Units
Every gearbox is tested on a bench to guarantee proper operation before shipping.
Installation & Technical Support
Guidance for fitment and full installation services throughout UAE.
Replacement Parts Support
OEM-standard solenoids, belts, and pulleys are available for long-term reliability.
