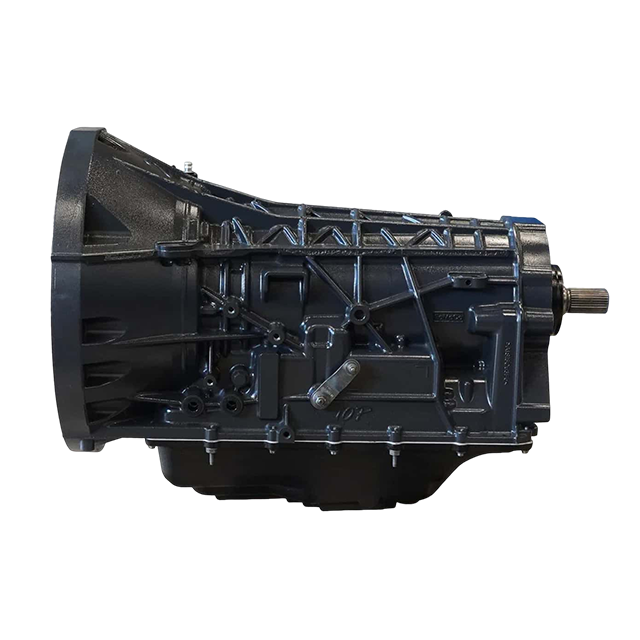

Chrysler 300C 845RE Gearbox 3.6L 4WD | Used & Reconditioned in UAE
Super5 supplies used and professionally reconditioned 845RE gearboxes for Chrysler 300C 3.6L 4WD models (2016–2022). Each unit is fully inspected, bench-tested, and refurbished with OEM-standard components for reliable performance on city roads and highways. A 3-month warranty is provided, and expert installation is available across Dubai, Sharjah, and Abu Dhabi.
Stock: 1 units
Log in to unlock member/partner pricesVehicle Fitment
| Years | Make | Model | Engine | Drive Type |
|---|---|---|---|---|
| 2016–2022 | Chrysler | 300C | 3.6L | AWD |
The 845RE 8-speed automatic gearbox is engineered for smooth gear shifts, optimal fuel efficiency, and responsive acceleration. Reconditioned units deliver reliable performance under UAE driving conditions, handling high temperatures and heavy loads effectively. When paired with Mopar ATF+4 fluid, the gearbox ensures long-term durability, precise torque delivery, and consistent 4WD traction performance.
Technical Parameters
| Specification | Details |
| Gearbox Model | 845RE |
| Transmission Type | 8-Speed Automatic |
| Manufacturer | Chrysler / ZF |
| Torque Capacity | ~360 Nm |
| ATF / Fluid Type | Mopar ATF+4 |
| Mechatronic Type | Integrated TCU / Mechatronic Unit |
| Dry Weight | ~110 kg |
| Cooling System | ATF Cooler Recommended for Hot & Heavy Use |
Installation process and precautions
Prepare the Vehicle
Park on level ground, disconnect the battery, and safely lift the 300C using a hoist or jack stands.
Remove Old Gearbox
Drain all ATF, disconnect wiring harnesses, cooler lines, and unbolt the existing 845RE gearbox carefully.
Install Reconditioned 845RE
Use a transmission jack to position the refurbished unit. Replace seals and torque all mountings according to OEM specifications.
Reconnect Components
Reconnect wiring harnesses, sensors, and the mechatronic unit. Ensure all plugs are fully seated to prevent errors.
Refill ATF
Refill with Mopar ATF+4 fluid and adjust levels according to operating temperature guidelines.
Programming & Adaptation
Perform TCU and ECU calibration using a Chrysler-compatible diagnostic scanner to ensure smooth 8-speed operation and proper AWD functionality.
Final Road Test
Test for smooth gear shifts, proper acceleration, and stable ATF pressure under city and highway conditions.
Professional Installation Services
Super5 offers full installation in Dubai and Sharjah, with delivery and support available across Abu Dhabi, Ajman, and other UAE cities.
FAQ
Q1: Do you sell new 845RE gearboxes?
No. Super5 only supplies used and professionally reconditioned 845RE gearboxes with warranty.
Q2: Is the 845RE compatible with 2WD Chrysler 300C?
No. This unit is designed exclusively for all-wheel-drive (AWD) Chrysler 300C 3.6L models.
Q3: Can I buy a reconditioned 845RE gearbox in Dubai?
Yes. Both used and refurbished units are available with delivery and installation across Dubai, Sharjah, and Abu Dhabi.
Q4: Is ECU/TCU programming required after installation?
Yes. Adaptation and calibration are required for smooth 8-speed operation and proper AWD torque distribution.
Q5: Do you ship 845RE gearboxes outside the UAE?
Yes. We export to GCC countries, Africa, and other international regions with secure packaging.
Warranty and Service
3-Month Warranty
All used and reconditioned 845RE gearboxes come with a 3-month warranty covering workmanship and functional defects.
Bench-Tested Units
Every gearbox is inspected and bench-tested to ensure smooth 8-speed operation and proper 4WD torque distribution.
Installation & Technical Support
Guidance for fitment and full installation services across UAE cities.
Replacement Parts Support
OEM-standard seals, clutches, and mechatronic components are available to maintain long-term reliability.
