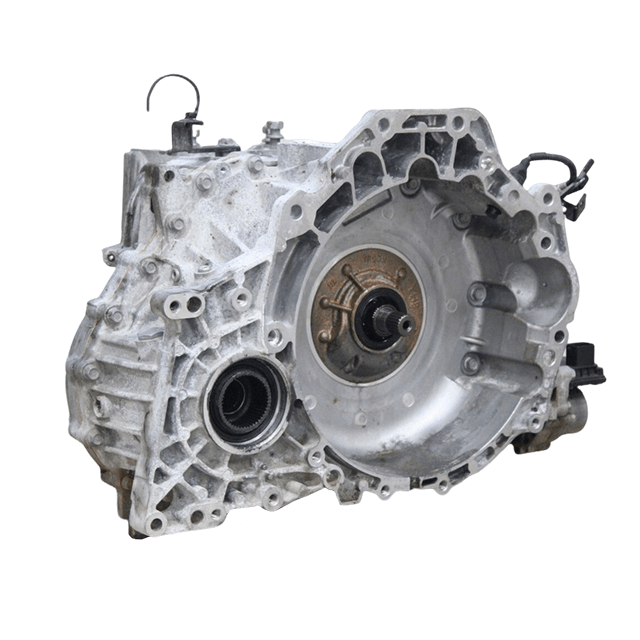

A8LF1 Gearbox for Hyundai SantaFe 2.0 2WD (4G150) | Used & Reconditioned in UAE
Super5 supplies used and professionally reconditioned A8LF1 gearboxes for Hyundai SantaFe 2.0L 2WD (4G150) models. Each unit undergoes full inspection, bench testing, and refurbishment to ensure reliable performance. We provide a 3-month warranty and expert installation services across Dubai, Sharjah, and Abu Dhabi.
Stock: units
Log in to unlock member/partner pricesVehicle Fitment
| Years | Make | Model | Engine | Drive Type |
|---|---|---|---|---|
| 2022–2023 | Hyundai | Santafe (4G150) | 2.0L | FWD |
The A8LF1 is an 8-speed automatic transmission designed for smooth, responsive, and fuel-efficient driving in the Hyundai SantaFe 2.0 2WD. Reconditioned units restore OEM-level torque handling, precise gear engagement, and reliable drivability in both urban and highway conditions. Tested for UAE high-temperature conditions, these gearboxes provide long-term stability, smooth acceleration, and optimized shift timing when used with Hyundai ATF SP-IV fluid.
Technical Parameters
| Specification | Details |
| Gearbox Model | A8LF1 |
| Transmission Type | 8-Speed Automatic |
| Manufacturer | Hyundai |
| Torque Capacity | ~350 Nm |
| ATF Type | Hyundai ATF SP-IV |
| Mechatronic Type | Integrated TCU |
| Dry Weight | ~90 kg |
| Cooling System | ATF Cooler Recommended |
Installation process and precautions
Prepare the Vehicle
Park the car on level ground, disconnect the battery, and lift it safely using a hoist or jack stands.
Remove Old Gearbox
Drain the ATF fluid completely, disconnect the wiring harnesses and cooler lines, then carefully unbolt and remove the existing transmission.
Install the Reconditioned A8LF1
Position the refurbished gearbox with a transmission jack. Replace all necessary seals and torque the mountings according to OEM specifications to ensure correct alignment and fitment.
Reconnect Components
Reconnect all wiring, sensors, and TCU connections. Double-check that every plug is fully seated to prevent faults or electrical errors.
Fill with ATF Fluid
Refill the system with Hyundai ATF SP-IV fluid and set the fluid level according to the manufacturer’s specifications, making adjustments at the recommended operating temperature.
Programming & Adaptation
Use a Hyundai-compatible diagnostic tool to perform TCU adaptation and ECU calibration. This ensures smooth shifting and correct gear engagement.
Final Road Test
Conduct a full road test, checking acceleration, deceleration, and gear transitions in both city and highway conditions. Verify ATF pressure stability and confirm that the transmission operates properly under all driving modes.
FAQ
Q1: Can this A8LF1 gearbox be used in AWD SantaFe models?
No. The A8LF1 is designed specifically for 2WD Hyundai SantaFe vehicles. AWD versions require a different gearbox.
Q2: Which ATF fluid is recommended for optimal performance?
Hyundai ATF SP-IV or OEM-approved equivalent is required for proper operation and longevity.
Q3: How long can a reconditioned A8LF1 gearbox last?
With proper maintenance and regular ATF changes, it can last 150,000–200,000 km.
Q4: Is ECU/TCU programming required after installation?
Yes. Adaptation and calibration are necessary to ensure smooth shifting and optimal gear operation.
Q5: Do you offer installation outside Dubai?
Yes. Installation and technical support are available in Sharjah, Abu Dhabi, Ajman, and other UAE cities.
Warranty and Service
3-Month Warranty
Covers workmanship and functional defects.
Bench-Tested Units
Each gearbox is tested and inspected before shipping.
Installation & Technical Support
Expert guidance and on-site installation support available across UAE.
Replacement Parts Support
OEM-standard solenoids, TCU modules, and seals available for long-term reliability.
